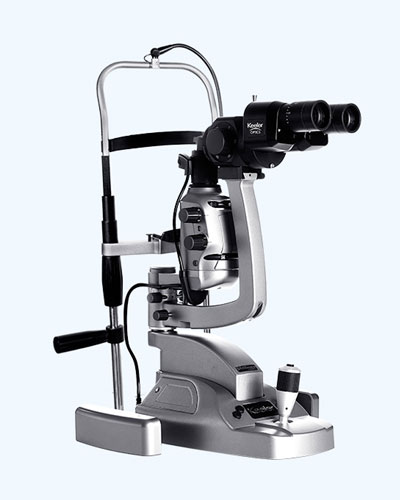

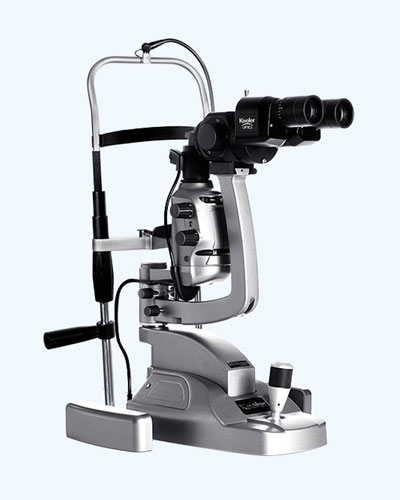

KSL-Z Range
Models
We set ourselves the task of designing a slit lamp to exceed performance expectations. Our painstaking attention to detail has helped us to achieve just this.
To build long term relationship with our

customers and clients



KSL-Z3
  • Traditional Slit Lamp
  • Lower Illumination 3 Step Drum (10x, 16x, 25x)
KSL-Z5
  • Traditional Slit Lamp
  • Lower Illumination 5 Step Drum (6x, 10x, 16x, 25x, 40x)





KSL-Z3- DR
  • Digital Ready Slit Lamp
  • Lower Illumination 3 Step Drum (10x, 16x, 25x)
KSL-Z5- DR
  • Digital Ready Slit Lamp
  • Lower Illumination 5 Step Drum (6x, 10x, 16x, 25x, 40x)
Available Add-Ons:
  • TTI Beam Splitter : AOS Slit Diagnostic Software
  • Digital Camera : Kapture Software

KSL-Z3- D
  • Digital Slit Lamp 3 Megapixel: 2056 x 1542 USB 3 Camera Kapture Software Lower Illumination 3 Step Drum (10x, 16x, 25x)
KSL-Z5- D
  • Digital Slit Lamp 3 Megapixel: 2056 x 1542 USB 3 Camera Kapture Software Lower Illumination 5 Step Drum (6x, 10x, 16x, 25x, 40x)
Available Add-On:
  • AOS Slit Diagnostic Software


Included as standard are the 1mm square aperture for uveitis assessment, a yellow fluorescein barrier filter and the ability to decouple or offset the slit.
Features
Standard version Features

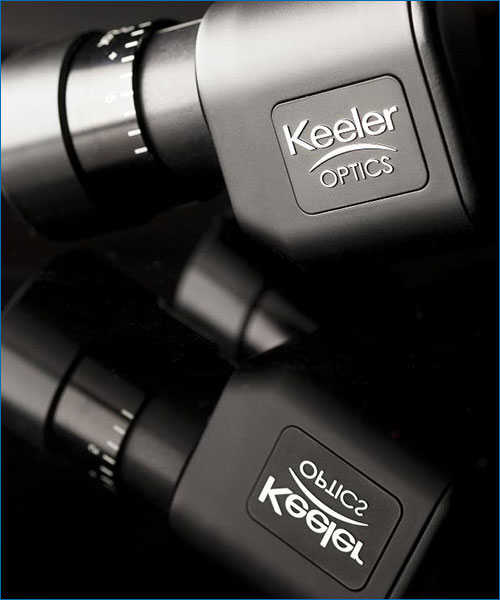

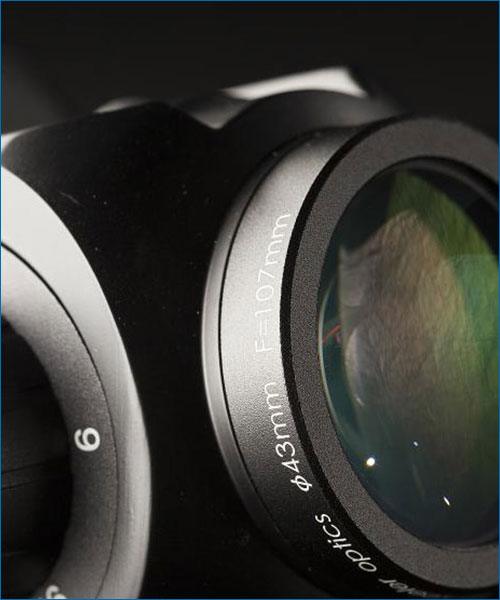

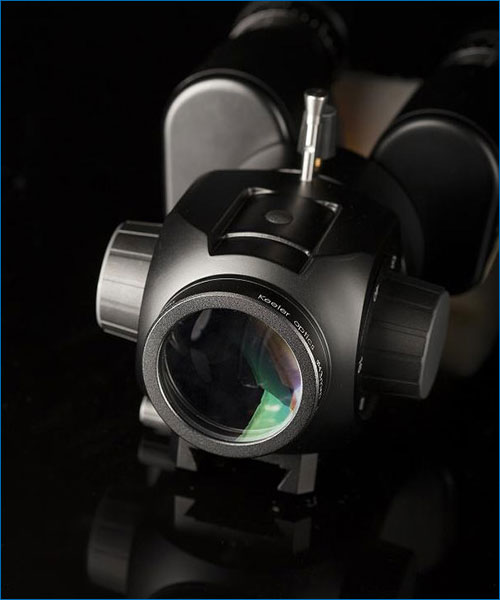

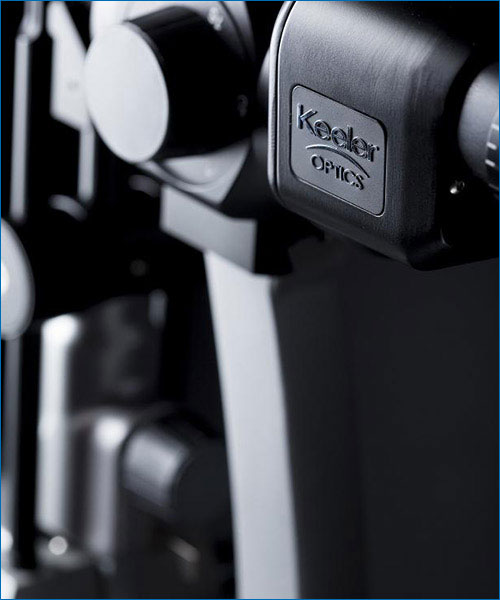

  • Keeler optics
  • British built
  • Stylish and contemporary design

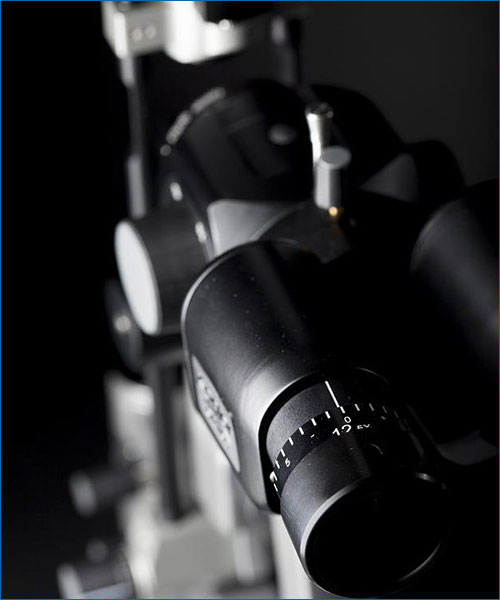

  • Converging or parallel binoculars
  • 14mm Slit length / maximum aperture
  • 5 step or 3 step magnification systems (X 6 to x 40 or X 10 to X 25)
  • Blue, red-free, clear, neutral density and diffuser filters

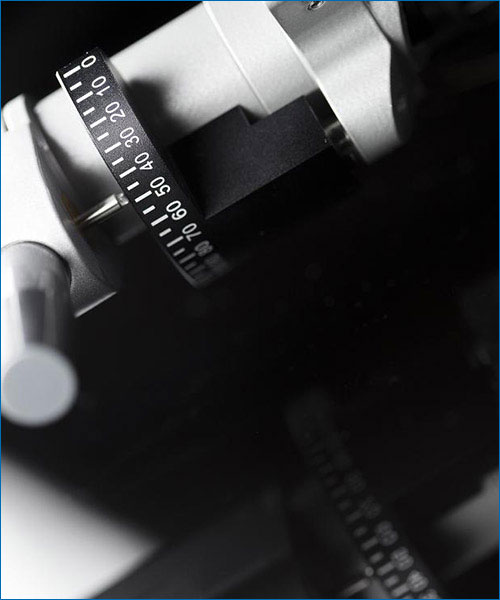

  • 360 degree continuous slit rotation
  • Slit offset / decoupling
  • Integrated yellow barrier filter
  • 1m Square aperture for Uveitis assessment
  • LED illumination
  • Illumination control mounted next to joystick
  • 3 year warranty
The digital version features a discrete integrated camera and beam splitter and has the key camera controls on the Slit Lamp base to simplify image acquisition. A fibre optic background illuminator and swing in/out diffuser gives additional image control.
Digital version Features
  • Feature and function rich Kapture Lite Video software
  • Trigger function on joystick
  • Camera exposure controls on Slit Lamp base

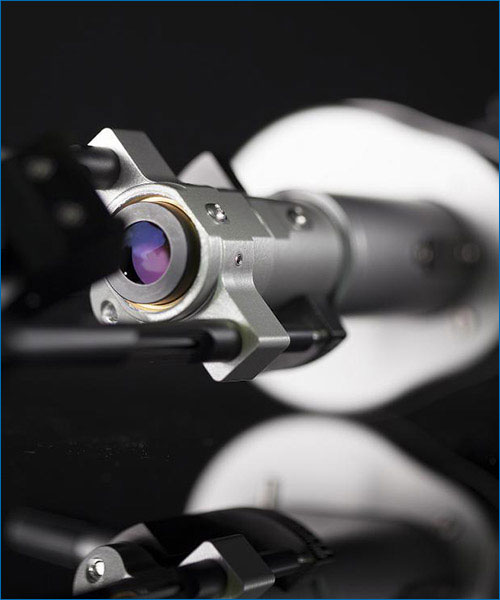

  • LED fibre optic background illumination system
  • USB 2 Camera and beam splitter system
  • USB hub integrated in Slit Lamp base
  • LED illumination
  • Illumination control mounted next to joystick
  • 3 year warranty
Configuration Options
Unitech Vision paired with a unique LED illumination system featuring 360 degree slit rotation and with all the filters and apertures you’ll need.

Available in 3 configurations;
  • Digital
  • Digital Ready
  • Standard

3 Step or 5 Step
Available with either a 3 step drum change for 10 x to 25 x magnifications or a 5 step drum change for x 6 to x 40 magnifications.

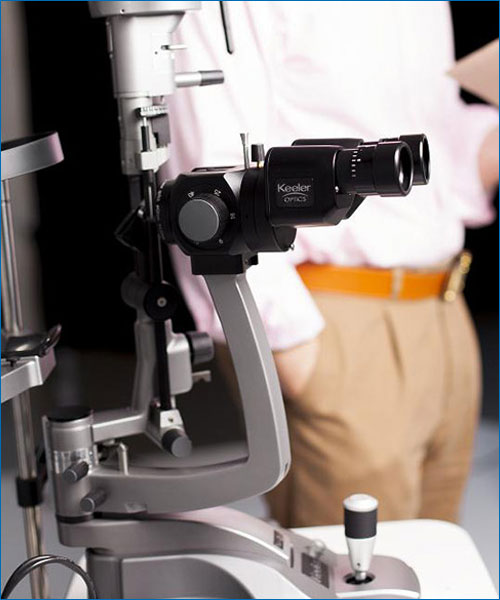

Converging or Parallel binoculars
Traditionally most Slit Lamp users prefer converging binoculars, but, many will prefer parallel binoculars for longer procedures or if they have used parallel systems in the past. We offer you the choice of either option.
Digital
Whether for patient or patient family education or for clinical record keeping digital systems are growing in popularity at an increasing pace.

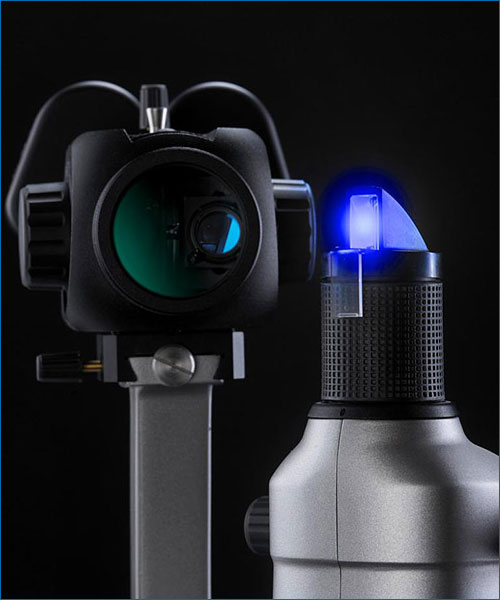

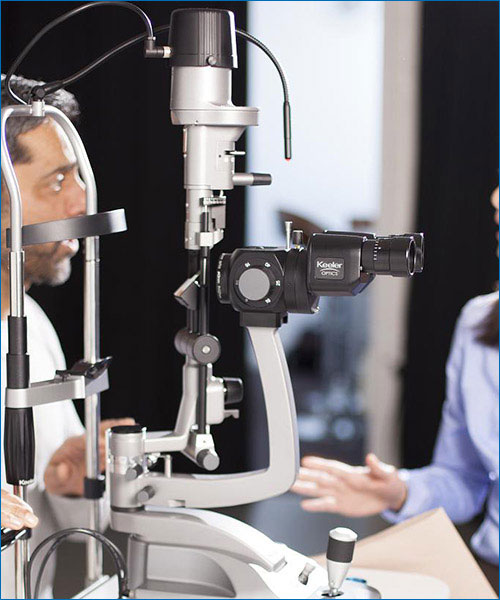

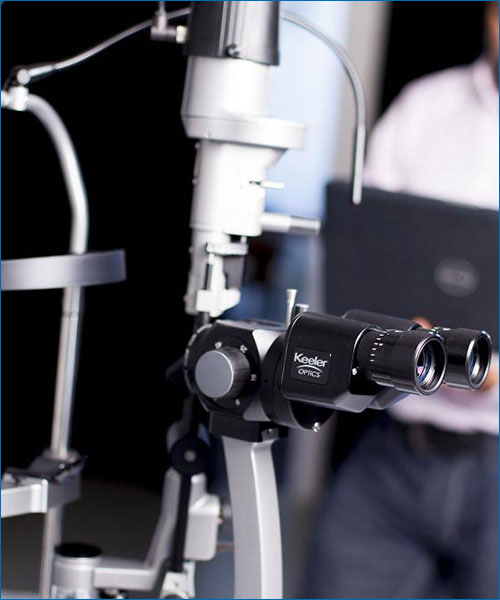

The Z Series Digital has our own Camera / Beamsplitter system, joystick trigger, on board camera controls, a diffuser and integral background illumination system.
